Deploy MinIO AIStor on Red Hat OpenShift

MinIO AIStor is licensed under the MinIO Software License. An active license is required for production deployments.

This page documents the installation and management of MinIO AIStor object storage using MinIO’s Red Hat OpenShift-certified operator through the Red Hat OLM.

If you prefer to install on OpenShift using regular Helm charts, use the regular install instructions.

This procedure assumes that the user interacting with the OpenShift cluster has authorization to:

Install Kubernetes operators and associated resources including CustomResourceDefinitions, StatefulSets, and Secrets into new or existing Namespaces.
Perform operations as a user that has broad permissions to create resources within multiple Namespaces.

Operator and OpenShift version compatibility

The following table lists the MinIO AIStor Operator versions that Red Hat publishes in the certified operator catalog for each OpenShift release. Each mark records what that catalog contains, as generated on 2026-07-17 from the certified-operators catalogs at commit 0b1710a. Catalog contents change as Red Hat publishes new bundles, and a cluster that uses a mirrored, restricted, or custom catalog can offer a different set.

Operator version	4.13	4.14	4.15	4.16	4.17	4.18	4.19	4.20	4.21	4.22
`2026.7.9050221`				✓	✓	✓	✓	✓	✓	✓
`2026.4.13102716`				✓	✓	✓	✓	✓	✓
`2026.3.18173617`				✓	✓	✓	✓	✓	✓
`2026.2.9031243`	✓	✓	✓	✓	✓	✓	✓	✓	✓
`2025.12.20100920`	✓	✓	✓	✓	✓	✓	✓	✓	✓
`2025.12.19091821`	✓	✓	✓	✓	✓	✓	✓	✓	✓
`2025.12.19074437`	✓	✓	✓	✓	✓	✓	✓	✓	✓
`2025.8.19175300`	✓	✓	✓	✓	✓	✓	✓	✓	✓
`2025.5.12190907`	✓	✓	✓	✓	✓	✓	✓	✓	✓

Mark	Meaning
`✓`	Red Hat publishes the Operator version in that OpenShift catalog.
(empty)	Red Hat does not publish the Operator version in that OpenShift catalog.

Select an Operator version

For a new installation, use the most recent version marked ✓ for your OpenShift version. A Subscription refers to a version by its full CSV name, which prefixes the version with the package name and a v. For example, on OpenShift 4.16 and later the most recent version is minio-object-store-operator.v2026.7.9050221, while OpenShift 4.13 to 4.15 requires minio-object-store-operator.v2026.2.9031243.

Install the MinIO AIStor Operator

This section installs the OpenShift-certified MinIO AIStor Operator. You must complete this section before proceeding to deploying MinIO AIStor.

As an alternative to the procedure below, you can install the Operator using the OpenShift Operator Hub. Search for MinIO, select the MinIO AIStor Operator for installation, then follow the displayed instructions.

Retrieve your license file

Log into SUBNET and select the License button in the Deployments view.

The Account License modal

Save the value to a secure location for use in a subsequent step.
License Management
Starting with AIStor Server RELEASE.2025-12-20T04-58-37Z, deployments can start without a license in offline mode. All S3 operations are blocked until you install a valid license, but the Admin API and Console remain accessible.

After deployment starts, you can register with SUBNET and apply your license:

mc license register ALIAS --license /path/to/minio.license
For license renewal, expiration details, and mode restrictions, see Licenses.
Create the MinIO AIStor namespace

Use the oc command to create a new project for MinIO AIStor:
```
oc new-project aistor
```
Create and apply the SUBNET license secret

Use the following file as a template. Replace the minio.license value with the base64-encoded value of your SUBNET license.
```
# license.yaml

apiVersion: v1
data:
   minio.license: <BASE64_ENCODED_LICENSE>
kind: Secret
metadata:
   name: minio-license
type: Opaque
```
Apply the license to the aistor namespace:
```
oc apply -f license.yaml -n aistor
```
Create the operator manifest and install to the namespace

Use the following file as a template for the operator bundle. For additional configuration options, see the Operator Environment Variables reference.
```
# subscription.yaml

apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
   name: minio-object-store-operator
spec:
   channel: stable
   installPlanApproval: Automatic
   name: minio-object-store-operator
   source: certified-operators
   sourceNamespace: openshift-marketplace
   startingCSV: minio-object-store-operator.v2026.7.9050221
---
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
   name: objectstore-operator-group
```
The startingCSV above names the most recent Operator version that Red Hat publishes, which OpenShift 4.16 and later offer. On OpenShift 4.13 to 4.15, replace it with the most recent version marked ✓ for your OpenShift version in the compatibility table, or the Subscription cannot resolve.

The OperatorGroup controls which namespaces the Operator watches. As written above, it has no spec.targetNamespaces, so the Operator watches every namespace in the cluster. This is the OLM AllNamespaces install mode, and every Operator version in the compatibility table supports it.

Certified Operator 2026.7.9050221 and later also let you scope the Operator to a set of namespaces. Create those namespaces before you apply the OperatorGroup. OLM binds the Operator’s namespaced permissions into each target namespace, which it cannot do for a namespace that does not exist yet:
```
oc new-project aistor-primary
oc new-project aistor-secondary
```
The next section creates aistor-primary with the same command, so skip that step if you create the namespace here.

Then add spec.targetNamespaces to the OperatorGroup:
```
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
   name: objectstore-operator-group
spec:
   targetNamespaces:
      - aistor-primary
      - aistor-secondary
```
List every namespace that holds an ObjectStore resource. The Operator reconciles ObjectStore resources only in the namespaces you list, and OLM grants it namespaced permissions only there. An ObjectStore you create in any other namespace is never reconciled.

A namespace holds at most one OperatorGroup, and that OperatorGroup governs every Operator installed in the namespace. The MinIO KMS Operator supports the AllNamespaces install mode only, so install it in a namespace of its own rather than alongside a scoped object store Operator.

Version added

Scoping the Operator to a set of namespaces requires certified Operator 2026.7.9050221 or later. Earlier versions in the compatibility table declare AllNamespaces as their only supported install mode. On those versions, an OperatorGroup that sets spec.targetNamespaces leaves the ClusterServiceVersion in UnsupportedOperatorGroup and the Operator never installs. OpenShift 4.13 to 4.15 offer no Operator version that supports scoping, so omit spec.targetNamespaces on those releases.

Apply the manifest to the aistor namespace:
```
oc apply -f subscription.yaml -n aistor
```
Next steps

You can now deploy MinIO AIStor object storage to your OpenShift cluster using the OpenShift UI.

Deploy MinIO AIStor using OpenShift

SELinux on OpenShift

OpenShift clusters with SELinux enabled may experience Pod startup failures when using large Persistent Volumes. The error is due to SELinux applying labels to each object in a Persistent Volume.

For clusters with SELinux enabled, see SELinux configuration for additional configuration steps to take.

Create the project

Use the oc new-project command to create a project for the MinIO AIStor deployment:
```
oc new-project aistor-primary
```
Create a secret for the storage configuration

MinIO AIStor uses a plaintext configuration file for looking up environment variables. Create a Kubernetes secret where the config.env key has the list of environments in export ENVVAR format.
```
# storage-configuration.yaml
apiVersion: v1
kind: Secret
metadata:
   name: storage-configuration
type: Opaque
stringData:
   config.env: |-
      export MINIO_ROOT_USER=aistor-admin
      export MINIO_ROOT_PASSWORD=REPLACEME123
```
Modify the file to reflect your desired configuration, then apply the file to the project:
```
oc apply -f storage-configuration.yaml -n aistor-primary
```
Label the nodes for spread zones

Spread zone configuration distributes the Pods of a pool across zones, the failure domains you define with node labels. This configuration is optional. If you want it, apply the node labels now, before you create the object store. The Operator assigns each Pod its zone when it first creates the Pod, and injects a node affinity that requires a node in that zone. A Pod assigned to a zone that no node carries stays unschedulable. Labels you add later do not move Pods that OpenShift has already scheduled.

Version added

The Operator assigns Pods to zones through an admission webhook. Red Hat first published that webhook in certified Operator version 2025.12.20100920. Earlier versions in the compatibility table do not include it, so spread zone configuration has no effect on them.

A zone is whatever you label as one. Label each host as its own zone to spread the Pods of a pool across hosts, or label each rack as a zone to spread them across racks. The Operator assigns the Pods to the zones in a round robin. The example pool in Create a MinIO AIStor object store resource deploys eight servers, so it needs at least eight zones for each Pod to land in a zone of its own.

Give every node that can host the pool a label naming the zone it belongs to. The following commands put each of the eight nodes of the example pool in a zone of its own:
```
oc label node NODE_1 topology.kubernetes.io/zone=zone-1
oc label node NODE_2 topology.kubernetes.io/zone=zone-2
oc label node NODE_3 topology.kubernetes.io/zone=zone-3
oc label node NODE_4 topology.kubernetes.io/zone=zone-4
oc label node NODE_5 topology.kubernetes.io/zone=zone-5
oc label node NODE_6 topology.kubernetes.io/zone=zone-6
oc label node NODE_7 topology.kubernetes.io/zone=zone-7
oc label node NODE_8 topology.kubernetes.io/zone=zone-8
```
Then enable spread zones on each pool of the object store and list every zone the pool uses:
```
spec:
  pools:
    - name: pool-0
      spreadZoneConfig:
        enabled: true
        matchValues:
          - zone-1
          - zone-2
          - zone-3
          - zone-4
          - zone-5
          - zone-6
          - zone-7
          - zone-8
```
The default matchLabel is topology.kubernetes.io/zone. To group nodes by a different label, set matchLabel on the pool and apply that label to the nodes instead.

Set matchValues on every pool you enable. If you leave it out, the Operator builds the zone list from every node in the cluster that carries the matchLabel, not only the nodes you intend for the pool. Zones that hold no node for the pool still take a turn in the round robin. Run oc get nodes -L topology.kubernetes.io/zone to see which nodes already carry the label.

These settings belong under spec.pools[].spreadZoneConfig in the ObjectStore resource. Spread Zone Configuration covers the same settings in the Helm chart values form, which applies only to a Helm installation.
Open the OpenShift UI and navigate to the MinIO AIStor Operator

Use your preferred browser to access the UI for your OpenShift installation. Select the MinIO AIStor Operator from the list of installed operators.

Create a MinIO AIStor object store resource

You can deploy MinIO AIStor using the OpenShift UI or the oc CLI tool.

OpenShift UI

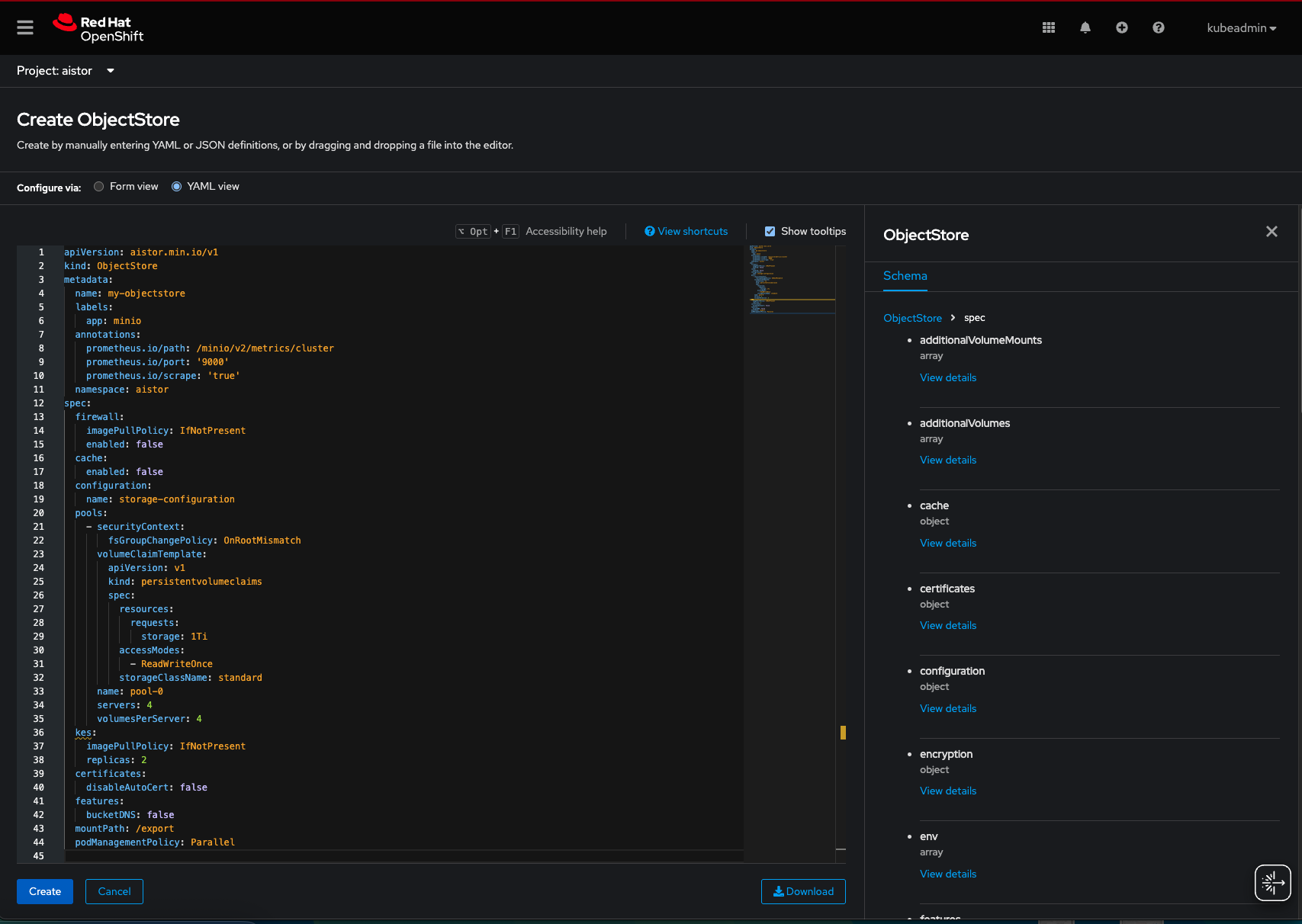

The UI provides a tab for deploying new object store resources. Use either the UI or the YAML editor to construct the MinIO AIStor definition.

You can use the following example YAML as a baseline for further customization.

# aistor-primary-storage.yaml
apiVersion: aistor.min.io/v1
kind: ObjectStore
metadata:
  annotations:
    prometheus.io/path: /minio/v2/metrics/cluster
    prometheus.io/port: "9000"
    prometheus.io/scrape: "true"
  labels:
    app: minio
  name: aistor-primary
  namespace: aistor-primary
spec:
  certificates:
    disableAutoCert: false
  configuration:
    name: storage-configuration
  mountPath: /export
  podManagementPolicy: Parallel
  pools:
    - name: pool-0
      servers: 8
      volumeClaimTemplate:
        apiVersion: v1
        kind: persistentvolumeclaims
        spec:
          accessModes:
            - ReadWriteOnce
          resources:
            requests:
              storage: 1Ti
#         storageClassName: directpv-min-io
      volumesPerServer: 8

The example above uses the default storage class on the OpenShift cluster. You can specify a custom storage class instead, such as MinIO DirectPV, for provisioning Persistent Volumes to support the MinIO AIStor deployment.

CLI

Create a YAML file for describing the object store resource. You can use the following example YAML as a baseline for further customization.

# aistor-primary-storage.yaml
apiVersion: aistor.min.io/v1
kind: ObjectStore
metadata:
  annotations:
    prometheus.io/path: /minio/v2/metrics/cluster
    prometheus.io/port: "9000"
    prometheus.io/scrape: "true"
  labels:
    app: minio
  name: aistor-primary
  namespace: aistor-primary
spec:
  certificates:
    disableAutoCert: false
  configuration:
    name: storage-configuration
  mountPath: /export
  podManagementPolicy: Parallel
  pools:
    - name: pool-0
      servers: 8
      volumeClaimTemplate:
        apiVersion: v1
        kind: persistentvolumeclaims
        spec:
          accessModes:
            - ReadWriteOnce
          resources:
            requests:
              storage: 1Ti
#         storageClassName: directpv-min-io
      volumesPerServer: 8

oc apply -f aistor-primary-storage.yaml

Tip: For production deployments, consider enabling PVC protection to prevent accidental data loss by adding pvcProtection: true to the ObjectStore spec.

Monitor the Namespace

The MinIO AIStor Operator deploys resources to the Namespace that include Deployments, ReplicaSets, Services, and Pods. Once all Pods deploy successfully, you can access the MinIO AIStor services by configuring Routes, Ingress, or similar network controls.

The minio service provides access to the S3 API. The Console service takes the name of the object store with a -console suffix, aistor-primary-console in this example, and provides access to the Console UI for web access and management.

Expose access using routes

You can configure OpenShift Routes to expose the minio and aistor-primary-console services to external traffic. Set spec.host on each Route to a hostname that resolves to the OpenShift router, and use a different hostname for each Route.

The port name in spec.port.targetPort depends on whether the object store uses TLS. The examples below match the ObjectStore created above, which sets disableAutoCert: false and therefore uses TLS. If you disable automatic certificates and provide no certificates of your own, use http-minio and http-console instead.

The following example Route exposes the minio service for S3 access.

kind: Route
apiVersion: route.openshift.io/v1
metadata:
  name: route-object-store-s3-api
  namespace: aistor-primary
  annotations:
    openshift.io/host.generated: 'true'
spec:
  host: openshift-worker-node-01.example.net
  to:
    kind: Service
    name: minio
    weight: 100
  port:
    targetPort: https-minio
  tls:
    termination: passthrough
    insecureEdgeTerminationPolicy: Redirect
  wildcardPolicy: None

You can then access the service using the hostname and the mc alias set command:

mc alias set aistor-primary https://openshift-worker-node-01.example.net MINIO_ACCESS_KEY MINIO_SECRET_KEY --insecure

The following example Route exposes the Console service for browser access.

kind: Route
apiVersion: route.openshift.io/v1
metadata:
  name: route-object-store-console
  namespace: aistor-primary
spec:
  host: aistor-console.example.net
  to:
    kind: Service
    name: aistor-primary-console
    weight: 100
  port:
    targetPort: https-console
  tls:
    termination: passthrough
    insecureEdgeTerminationPolicy: Redirect
  wildcardPolicy: None

Open https://aistor-console.example.net in a browser and sign in with the credentials in the storage-configuration Secret.

SELinux configuration

On OpenShift clusters with SELinux enabled, MinIO AIStor Pods may fail to start with a CreateContainerError status. This occurs because SELinux attempts to apply security labels to all files on mounted Persistent Volumes before allowing the container to start. For Persistent Volumes with large numbers of files, this relabeling process can exceed container startup timeouts.

Symptoms

The following symptoms can help identify if the relabeling behavior is the root cause:

Pod status shows CreateContainerError
Pod events contain “context deadline exceeded” messages

Host logs show messages like:

Creation of container...is not yet finished. Currently at stage container volume configuration.

To confirm SELinux relabeling is causing the issue, check the CRI-O logs on the affected node:

journalctl -u crio -f

Look for messages indicating the container is stuck at the “container volume configuration” stage.

Solutions

Choose one of the following approaches based on your security requirements and OpenShift version.

RuntimeClass

Recommended. This approach skips SELinux volume relabeling while maintaining security constraints. It requires creating a custom RuntimeClass and configuring CRI-O on your cluster nodes.

Create a MachineConfig to configure CRI-O to recognize the skip-relabeling annotation:

apiVersion: machineconfiguration.openshift.io/v1
kind: MachineConfig
metadata:
  labels:
    machineconfiguration.openshift.io/role: worker
  name: 99-worker-crio-selinux
spec:
  config:
    ignition:
      version: 3.2.0
    storage:
      files:
        - contents:
            source: data:text/plain;charset=utf-8;base64,W2NyaW8ucnVudGltZS5ydW50aW1lcy5zZWxpbnV4XQpydW50aW1lX3BhdGggPSAiL3Vzci9iaW4vcnVuYyIKcnVudGltZV9yb290ID0gIi9ydW4vcnVuYyIKcnVudGltZV90eXBlID0gIm9jaSIKYWxsb3dlZF9hbm5vdGF0aW9ucyA9IFsiaW8ua3ViZXJuZXRlcy5jcmktby5UcnlTa2lwVm9sdW1lU0VMaW51eExhYmVsIl0K
          mode: 0640
          overwrite: true
          path: /etc/crio/crio.conf.d/01-selinux.conf

The base64-encoded content configures a CRI-O runtime named selinux that allows the TrySkipVolumeSELinuxLabel annotation.

If you run MinIO AIStor Pods on control plane nodes, create an additional MachineConfig with machineconfiguration.openshift.io/role: master.

Create a RuntimeClass that references this configuration:

apiVersion: node.k8s.io/v1
kind: RuntimeClass
metadata:
  name: selinux
handler: selinux

Update your ObjectStore definition to use the RuntimeClass and annotation:

apiVersion: aistor.min.io/v1
kind: ObjectStore
metadata:
  name: aistor-primary
  namespace: aistor-primary
spec:
  pools:
    - name: pool-0
      servers: 8
      volumesPerServer: 8
      runtimeClassName: selinux
      annotations:
        io.kubernetes.cri-o.TrySkipVolumeSELinuxLabel: "true"
      volumeClaimTemplate:
        # ... your PVC configuration

Elevated SCC

This approach uses a SecurityContextConstraint (SCC) with the spc_t SELinux type to bypass volume relabeling. This method is less secure than the RuntimeClass approach as it grants broader permissions to the Pod.

Create a SecurityContextConstraint that allows the spc_t type:

apiVersion: security.openshift.io/v1
kind: SecurityContextConstraints
metadata:
  name: minio-spc
allowHostDirVolumePlugin: false
allowHostIPC: false
allowHostNetwork: false
allowHostPID: false
allowHostPorts: false
allowPrivilegeEscalation: false
allowPrivilegedContainer: false
fsGroup:
  type: RunAsAny
runAsUser:
  type: RunAsAny
seLinuxContext:
  type: RunAsAny
  seLinuxOptions:
    type: spc_t
supplementalGroups:
  type: RunAsAny
volumes:
  - configMap
  - downwardAPI
  - emptyDir
  - persistentVolumeClaim
  - projected
  - secret

Grant the SCC to the service account used by MinIO AIStor:

oc adm policy add-scc-to-user minio-spc -z minio-sa -n aistor-primary

Update your ObjectStore definition to specify the SELinux options:

apiVersion: aistor.min.io/v1
kind: ObjectStore
metadata:
  name: aistor-primary
  namespace: aistor-primary
spec:
  pools:
    - name: pool-0
      servers: 8
      volumesPerServer: 8
      securityContext:
        seLinuxOptions:
          type: spc_t

OCP 4.17+

Additional configuration

MinIO AIStor supports the following additional ObjectStore configuration options:

To configure MinIO AIStor using environment variables, including secure management of sensitive values with Kubernetes Secrets, see Environment Variable Configuration.
To distribute pods across failure domains for improved fault tolerance, see Spread Zone Configuration.
For all available Helm chart customization options, see the Object Store Helm Chart reference.

Deploy MinIO AIStor on Red Hat OpenShift

Operator and OpenShift version compatibility

Install the MinIO AIStor Operator

Retrieve your license file

Create the MinIO AIStor namespace

Create and apply the SUBNET license secret

Create the operator manifest and install to the namespace

Next steps

Deploy MinIO AIStor using OpenShift

Create the project

Create a secret for the storage configuration

Label the nodes for spread zones

Open the OpenShift UI and navigate to the MinIO AIStor Operator
