Install Key Manager on OpenShift

This page documents the installation and management of AIStor Key Manager using MinIO’s Red Hat OpenShift-certified operator. You can alternatively install Key Manager using our Helm charts.

This procedure assumes that the user interacting with the OpenShift cluster has authorization to:

Install Kubernetes operators and associated resources including CustomResourceDefinitions, Statefulsets, and secrets into new or existing namespaces and
Perform operations as a user that has broad permissions to create resources within multiple namespaces.

Install the AIStor Key Manager Operator

This section installs the OpenShift certified Key Manager operator. You must complete this section before proceeding to deploying the Key Manager.

As an alternative to the procedure below, you can install the Operator using the OpenShift Operator Hub. Search for ‘MinIO’, select the Key Manager operator for installation, then follow the displayed instructions.

Download your SUBNET license key

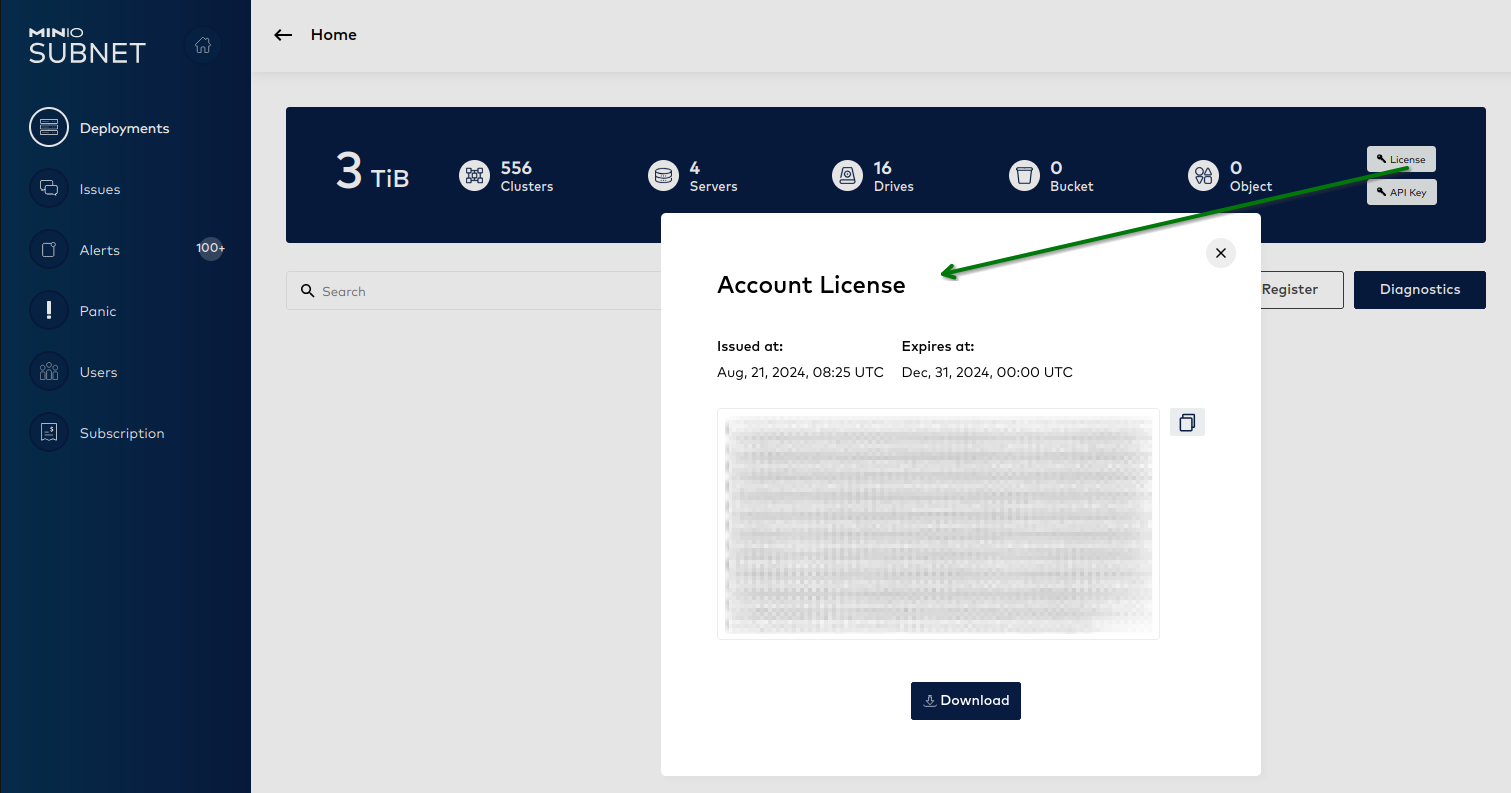

Log into MinIO SUBNET and access your License Key. From the Deployment view, select License to view the key.

Save the value to a secure location for use in a subsequent step.
Create the AIStor Key Manager namespace

Use the oc command to create a new project for Key Manager:
```
oc new-project keymanager-operator
```

Create and apply the SUBNET license secret

Use the following file as a template. Replace the minio.license value with the base64-encoded value of your SUBNET license.

# license.yaml

apiVersion: v1
data:
   minio.license: <base 64 encoded license here>
kind: Secret
metadata:
   name: minio-license
type: Opaque

Apply the license to the keymanager-operator namespace:

oc apply -f license.yaml -n keymanager-operator

Create the Operator manifest and install to the namespace

Use the following file as a template for the operator bundle:

# subscription.yaml

apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
   name: minio-key-manager-operator
spec:
   channel: stable
   installPlanApproval: Automatic
   name: minio-key-manager-operator
   source: certified-operators
   sourceNamespace: openshift-marketplace
   startingCSV: minio-key-manager-operator.v2025.5.12190907
---
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
   name: key-manager-operator-group

Apply the manifest to the keymanager-operator namespace:

oc apply -f subscription.yaml -n keymanager-operator

Next Steps

You can now deploy a Key Manager resource to your Open Shift cluster using either of the following methods:
- Deply using Helm Charts
- Deploy using Operator Hub and the AIStor Key Manager CRD

Deploy AIStor Key Manager using Operator Hub

This procedure documents installation on OpenShift using the Operator Hub UI. You must first install the Key Manager Operator before proceeding.

Generate a root encryption key for Key Manager

Key Manager uses a Root Encryption Key (REK) for encrypting all stored cryptographic data. To generate a key, use the following command:
```
docker run quay.io/minio/aistor/minkms:latest --soft-hsm
```
The output resembles the following:
```
hsm:ALGORITHM:<KEYSTRING>
```
Save the output to a secure location such as a dedicated secrets manager or password vault.
Open the OperatorHub UI and navigate to the Key Manager Operator

Use your preferred browser to access Operator Hub for your OpenShift installation. Select the AIStor Key Manager Operator from the list of installed operators.

Create a new Key Manager

The UI provides a tab for deploying new Key Manager resources. Use either the UI or the YAML editor to construct the Key Manager definition. Reference the AIStor Key Manager CRD for guidance in configuration.

You can use the following example YAML as a baseline for further customization.

apiVersion: aistor.min.io/v1alpha1
kind: KeyManager
metadata:
name: my-kms
namespace: aistor-keymanager
spec:
hsmSecret:
   name: my-kms-hsm
replicas: 3
imagePullSecrets:
   - name: registry-creds
volumeClaimTemplate:
   metadata:
      name: key-manager-volume
   spec:
      accessModes:
      - ReadWriteOnce
      resources:
      requests:
         storage: 25Mi
      storageClassName: standard # Replace with an appropriate storage class to meet the requested value
---
apiVersion: v1
data:
   hsm: <BASE64-encoded HSM>
kind: Secret
metadata:
   name: my-kms-hsm
   namespace: aistor-keymanager
type: Opaque

Deploy AIStor Key Manager using Helm

This procedure documents installation on Kubernetes with the AIStor Helm Charts. You must first install the Key Manager Operator before proceeding.

Add the AIStor Helm Repository

helm repo add minio https://helm.min.io/

Generate a root encryption key for Key Manager

Key Manager uses a Root Encryption Key (REK) for encrypting all stored cryptographic data. To generate a key, use the following command:
```
docker run quay.io/minio/aistor/minkms:latest --soft-hsm
```
The output resembles the following:
```
hsm:ALGORITHM:<KEYSTRING>
```
Save the output to a secure location such as a dedicated secrets manager or password vault.
Deploy the minio/aistor-keymanager chart

The following command deploys the Key Manager with the name and namespace of aistor-keymanager.
```
   helm install aistor-keymanager minio/aistor-keymanager \
     -n aistor-keymanager --create-namespace \
     --set "keyManager.hsm.key=hsm:ALGORITHM:<KEYSTRING>"
```
The command outputs instructions for connecting an AIStor object store to the Key Manager. AIStor can then use Key Manager to enable Server Side Encryption of objects.

By default, Key Manager deploys with 3 replicas. Each replica requires 25MiB of storage and uses the default storage class on the cluster. For more complete documentation, see Server Side Encryption with AIStor Key Manager.
